SPECIFICATIONSSample Rate48 kHzAD Conversion24 bits + AF method

AF method (Adaptive Focus method) is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.DA Conversion32 bitsProcessing32-bit floating pointEffects39 typesMemories99 (User) + 50 (Preset)Phrase Loop37 sec.Nominal Input LevelINPUT: -40 dBu (Adjustable)

AUX IN: -20 dBuMaximum Input LevelINPUT: 0 dBu

AUX IN: 0 dBuInput ImpedanceINPUT: 4 k ohms

AUX IN: 27 k ohmsNominal Output LevelOUTPUT L/MONO, R: -40 dBu

PHONES/LINE OUT: -10 dBuOutput ImpedanceOUTPUT L/MONO, R: 600 ohms

PHONES/LINE OUT: 47 ohmsRecommended Load ImpedanceOUTPUT L/MONO, R: 600 ohms or greater

PHONES/LINE OUT: 47 ohms or greaterDisplayGraphic color LCD 320 x 240 dotsControlsHARMONY switch

DOWN switch

UP switch

MENU button

EXIT button

PHONES/LINE knob

MEMORY knob

HARMONY knob

EFFECT knob

ECHO knob

MIC SENS knob

PHANTOM switch

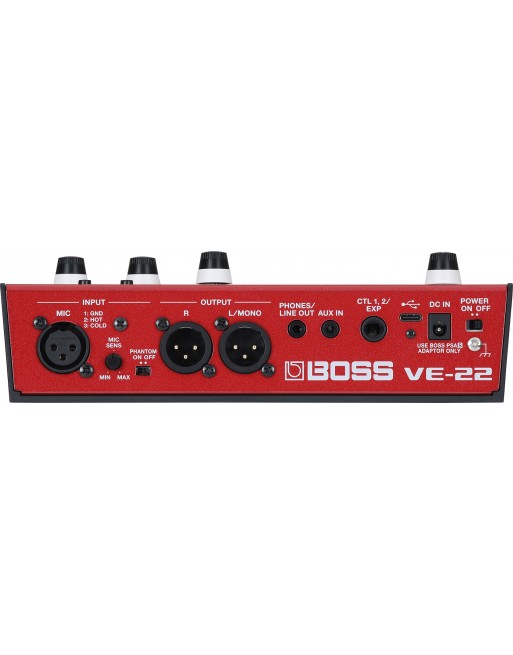

POWER switchConnectorsINPUT connector: XLR type, balanced, phantom power (DC 48 V, 10 mA Max)

OUTPUT L/MONO, R connectors: XLR type

PHONES/LINE OUT jack: Stereo miniature phone type

AUX IN jack: Stereo miniature phone type

CTL1,2 / EXP jack: 1/4-inch TRS phone type

USB COMPUTER port: USB Type-C(R)

DC IN jackPower SupplyAlkaline battery (AA, LR6) x 4

or

AC adaptor (PSA-S series: sold separately)Current Draw260 mA (with phantom power)

180 mA (without phantom power)Expected battery life under continuous useAlkaline battery: Approximately 6 hours (with phantom power)

Alkaline battery: Approximately 9 hours (without phantom power)

* This can vary depending on the specifications of the batteries, capacity of the batteries, and the conditions of use.AccessoriesSTARTUP GUIDE

Alkaline battery (AA, LR6) x 4

Leaflet “USING THE UNIT SAFELY”Options (sold separately)AC adaptor: PSA-S series

Footswitch: FS-5U, FS-6, FS-7

Expression Pedal: EV-30, FV-500L, FV-500H, Roland EV-5

Carrying Bag: CB-VE22
