IRIG HD 2

Conversion: 24-bit A/D, 24-bit D/A

Sampling Rate: 32.0 kHz, 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz

Input

Maximum Level: from 307 mVpp to 8.36 Vpp

Gain Control Range: 28.7 dB

Noise: -103dBA, -97 dB RMS

Distortion (THD): 0.007%

Frequency Response: 20 Hz - 20 kHz +/- 0.9 dB

Output

Maximum Level: 1.60 Vpp

Noise: -99dBA, -94 dB RMS

Distortion (THD): 0.007%

Frequency Response: 20 Hz - 20 kHz +/- 0.1 dB

Package includes

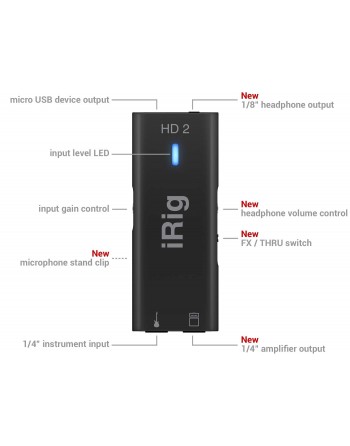

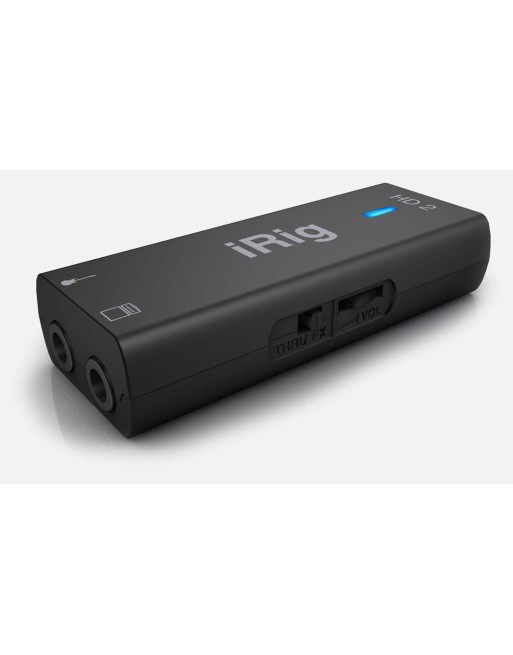

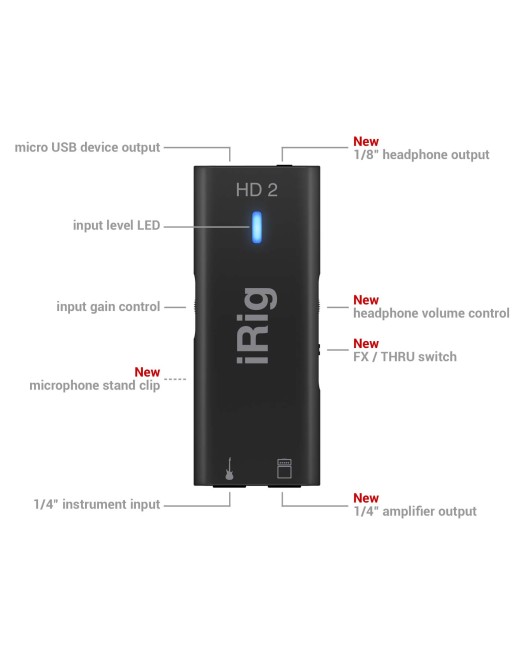

iRig HD 2 interface

Lightning to Micro-USB cable (60cm/23.62")

USB-A to Micro-USB cable (60cm/23.62")

USB-C to Micro-USB cable (60cm/23.62")

Detachable microphone stand mounting clip

Velcro strip

Dimensions

Size: 39mm/1.53" x 99mm/3.9" x 21mm/0.83"

Weight: 51g/1.8oz

Compatibility

iOS Devices

Compatible with iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPod touch 6th generation, iPod touch 5th generation, iPad Pro (9.7-inch), iPad Pro (12.9-inch), iPad mini 4, iPad Air 2, iPad mini 3, iPad Air, iPad mini 2, iPad 4th generation, iPad mini. iOS 6.0 or later is required.

Also compatible with all newer iPhone, iPad and iPod touch models.

Computers

Mac®: Mac OS X 10.6 or later. One free USB port.

Windows®: One free USB port. For low latency, the IK Multimedia's iRig audio driver must be installed
